2009 REXCON MODEL-S" PORTABLE Concrete Batch Plant

Description

Bidding Over

The auction is over for this lot.
The auctioneer wasn't accepting online bids for this lot.

Contact the auctioneer for information on the auction results.

Auction Date:2024 Apr 24 @ 16:00 (UTC-5 : EST/CDT)
Location:7821 River Rd, Waynesboro, Georgia, 30830, United States
Category Heavy Equipment / Concrete Batch Plants
Auction Currency USD
Start Price 100.00 USD
Estimated at 0.00 - 0.00 USD

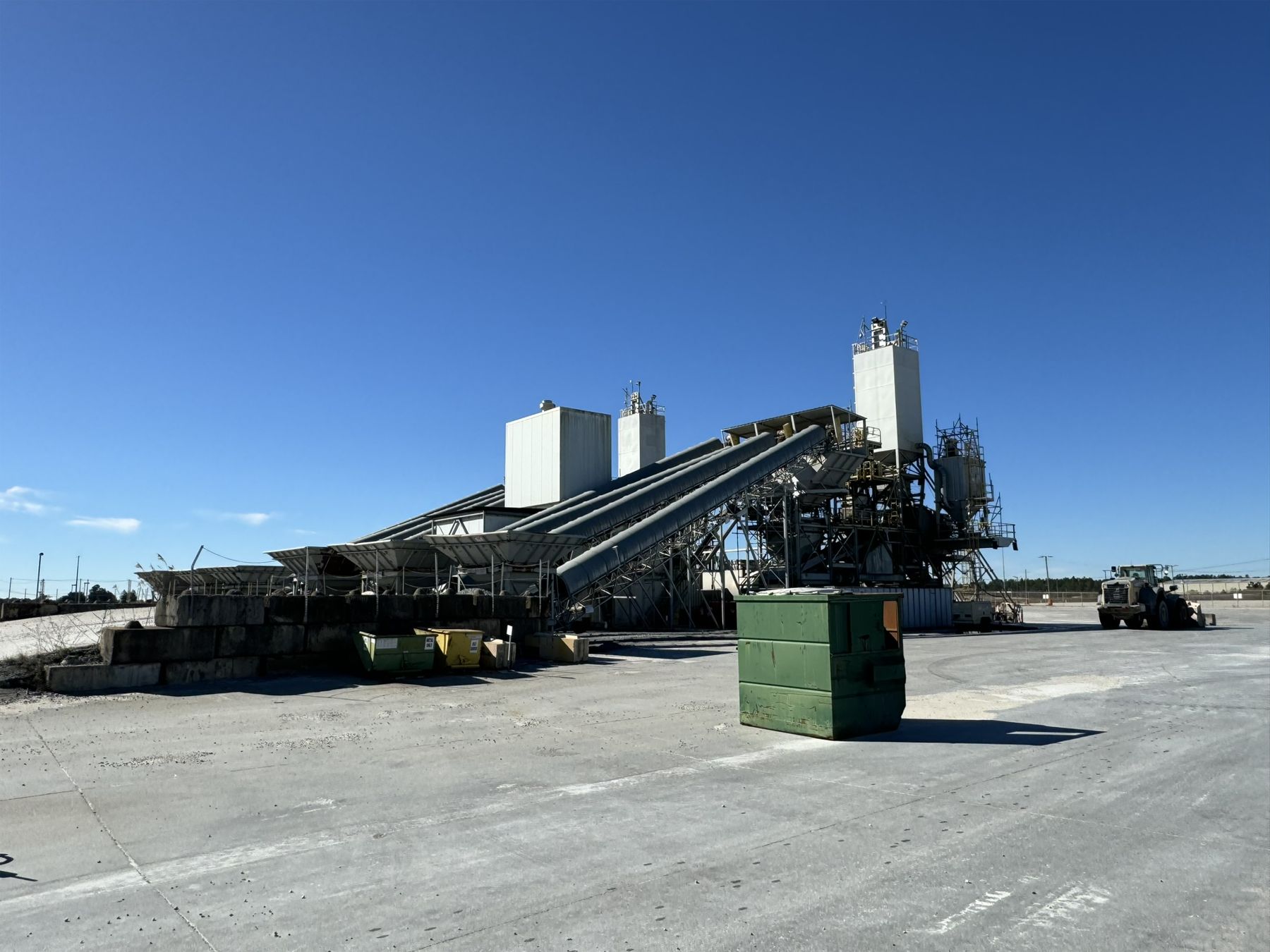

2009 REXCON MODEL-S" PORTABLE Concrete Batch Plant

Fully Operational Plant - Utility Owned

• 12 yard central mixers
• Hydronix moisture probes in each aggregate bin
• Badger meter for trim water
• Scale capacities: aggregate – 50000, cement, 10000, water – 2000, ice - 4000
• 2- Caterpillar 1250 KVA generators

5.2 EXISTING NON REDUNDANT SYSTEMS
• Tempered Water
• The batch plants share a common water chiller/heater unit manufactured by
• “Pearson Systems” that incorporates a 30,000 gallon (nominal rating) insulated
• storage tank with a 100 ton chiller and two 2.8 MM Btu/Hr burners. The usable
• capacity of the insulated storage tank is 27,000 gallons.
• The model designation for the chiller is “Pearson Model PH-3000 (100Ton) Air
• Cooled Water Chiller” and has a recovery capability of 3,274 gallons/hour (based
• on 75 degree water being cooled to 37-38 degrees with average ambient
• temperature of 95 degrees).
• The model designation for the heater is “Pearson Model P-30-2-20W” and has a
• recovery capability of 5,640 gallons/hour at 100 a degree rise. Recovery
• capability at 80 degree rise is 9500 gallons/hour.
• Ice Plant
• The batch plants share a common ice plant that was custom designed and built by
• Morris & Associates. The model designation is MIP-PA-3610-150. It is designed
• to store 150 tons of ice, recover at a rate of 150 tons of ice/day and deliver ice
• such that the batch plant rated capacity of 240 cubic yards per hour (cu yd/hr) is
• sustained.
• Pearson chiller is dead. Tube lead on A side of boiler. Parts on site for new owner to repair. B side controls replaced winter of 2022. Still works well with just one side operational.

Plants comply with the following standards:
o Concrete Plant Manufacturers’ Bureau (CPMB) 100-00, Concrete Plant Standards
o ASTM C94, Standard Specification for Ready Mixed Concrete
o National Ready Mixed Concrete Association (NRMCA), Certification of Ready Mixed Concrete Production Facilities

Located Offsite: Waynesboro, GA



Additional Info 1: Utility Owned

Located Offsite: Waynesboro, Georgia
